SCART til HDMI Converter opp-skalaer SCART (med
RGB, Composite Video og Audio L / R) signal fra enheter som Sky, Sky +, Standard
DVD-spiller, Wii-konsollen, etc. til HDMI 1080p. Det er med ekte scaler
funksjon, og utgang oppløsningen er satt til 720p eller 1080p for å unngå
kompatibilitet problem.
English:

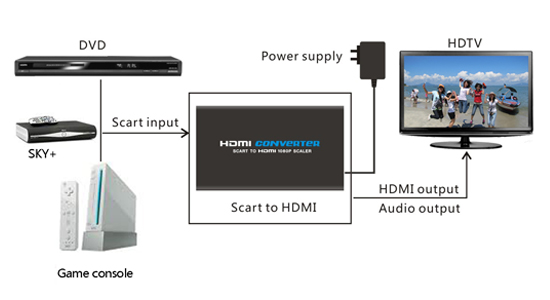

SCART to HDMI Converter up-scales SCART (including RGB, Composite Video and
Audio L/R) signal from devices such as Sky, Sky+, Standard DVD player, Wii
Console, etc. to HDMI 1080p. It is with real scaler function, and output
resolution is fixed at 720P or 1080P to avoid compatibility problem.
Innhold
- 1 x SCART to HDMI Converter
- 1 x Strømadapter 5V 1A
- 1 x Engelsk bruksanvisning
Tekniske data
-Scales SCART signal (RGB or Composite Video) to HDMI 720p or 1080P;
-HDMI output: 720P/60Hz, 1080P/60Hz;
-SCART audio is integrated into HDMI out as well as pass-through to earphone or
sound box output;
-Automatically detect RGB(50/60Hz), Composite Video(NTSC/PAL);
-Auto-store setting of output resolution.
Størrelse: 15.6 X
8.4 X 2.8 cm

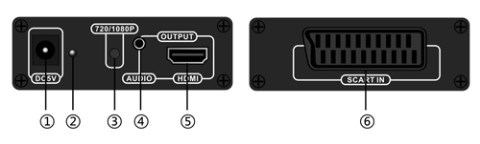

1.To connect 5V power supply
2.Power Indicator
3.Select output resolution at 720P or 1080P
4.3.5mm stereo output
5.HDMI output, to connect HD display
6.To connect Scart device
CE, FC
|
